DeviceNet Quick-Connect Modules: DB8-M,DB4-T

Attention: An upgraded version of this item is available.

Current Product	Benefits	Interchangeable

DB10Z1-M,DB10-T,DB13-T	New standard product with arc-prevention.	No

Product Advantages

The DeviceNet Module allows for communication and control of the Tool Changer with Master-and Tool-side DeviceNet nodes. (ODVA compliance certified. Quick Connect compatible.)
An integrated single- or double-solenoid valve (available on the Jxx valve adapter module) controls the Tool Changer locking mechanism.
A flexible boot surrounds the pin block and seals the connection from moisture while coupled.
Supports Safety PLC control of integrated valve power source.
Five (5) independent Tool-ID (0-9) switches provided.
Ready-to-Lock (R1 and R2), Lock, and Unlock sensor inputs provided.
Compact design package.

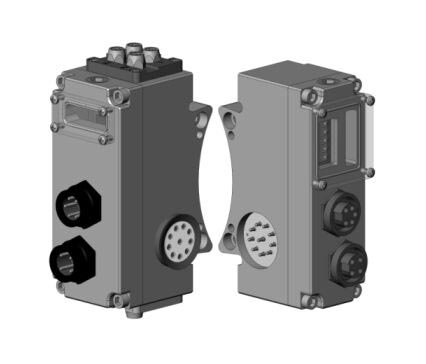

DB8 Master and DB4 Tool Modules

Part Number	Side	Notes	EDS File
9121-DB8-M	M	Quick Connect Capable DeviceNet Module with standard Mini connector interfaces with aux power wiring for Safety PLC, SEM (Mates with DB4-T) - Master side	9030-20-1009.eds
9121-DB4-T	T	Quick Connect Capable DeviceNet Module with 5 Independent switch Tool ID and no TSI, SEM (Mates with DB8-M) - Tool side	9030-20-1010.eds

Specifications

Compatible QCs

Connectors and Cables

Drawings

Manuals

3D CAD Models

Description:

Quick Connect Capable DeviceNet Module with standard Mini connector interfaces with aux power wiring for Safety PLC, SEM

Weight:

Master 1.65 lbs (0.75 kg)
Tool 1.30 lbs (0.59 kg)

Materials:

Elec. Rating:

ODVA Compliant

Operational Temperature Range:

-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC)
