ATI Develops Robotic Tool Changer for FANUC CRX Collaborative Robot
The QC-7 CRX-Ready Kit is a cost-effective solution for quickly changing tools.
ATI Industrial Automation's QC-7 Robotic Tool Changer is available as a complete CRX-Ready Kit for the FANUC CRX collaborative robot. This lightweight yet durable tool changer offers a variety of configuration options with ATI’s Pass-through Utility Modules and Tool Stand systems. An optional ML8 Electrical Module attaches easily to the QC-7 Tool Changer body, which also includes five pass-through air ports and lock/unlock air fittings.

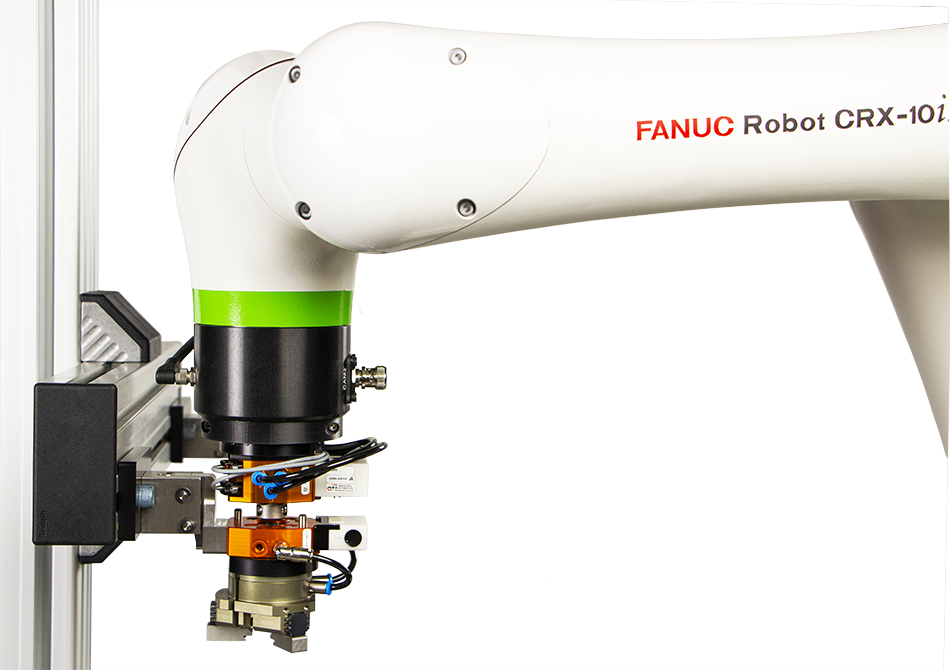

The QC-7 Robotic Tool Changer features a low stack height and easily attaches to the FANUC CRX robot with an included interface plate. This tool changer is compatible with ATI’s modular Tool Stands and has an optional tool storage hook to make robot programming easy.

The pneumatically-actuated QC-7 features No-Touch locking technology and a patented Fail-Safe locking mechanism for a secure connection between the master and tool. The design integrates lock/unlock sensors without the need for an additional sensor interface plate. This tool changer handles payloads up to 22 lbs (10 kg).

The QC-7 CRX-Ready Kit for the FANUC CRX robot includes QC-7 Tool Changer (Master and Tool side), electrical modules with 8-pin M8 connectors, lock/unlock sensing, cable to EOAT, interface plates, mounting hardware, assembly tools, and FANUC CRX software. Tool-side only Kits with M8 Module and cable to EOAT are also available.

Contact us to request pricing and delivery information.

More detailed information about our QC-7 Tool Changer is available here.

Click here to download a .zip file with our QC-7 CRX plugin software and manual.

Click here to view our video on how to install our QC-7 Tool Changer to a FANUC CRX Robot.

[Img1Link]

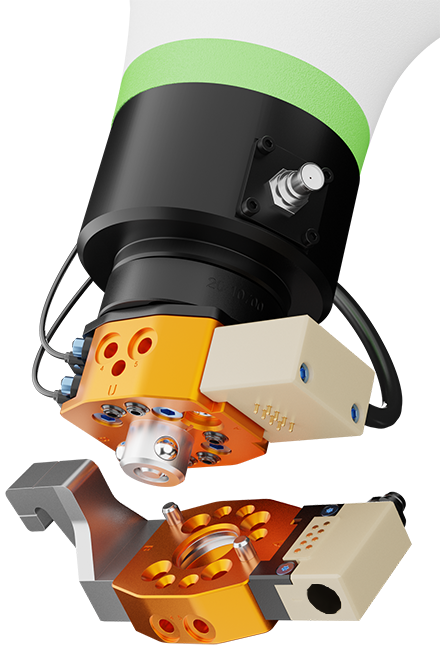

ATI QC-7 Master and Tool side Tool Changer Mounted to a FANUC CRX Cobot
