ATI Ethernet Force/Torque Sensors & Software for Yaskawa Robots

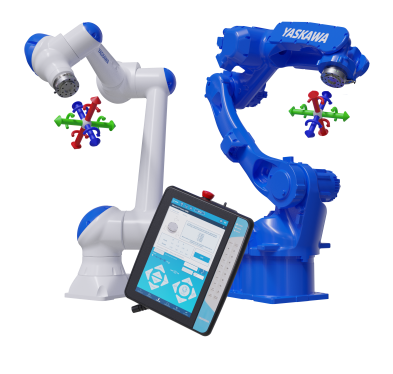

The world’s most reliable Multi-Axis Force/Torque sensors can now be easily integrated with Yaskawa Robots. Pair ATI sensors with Yaskawa robots to add an element of dexterity to your application.
-
ATI’s Force/Torque Sensor family now compatible with Yaskawa Robots via a Smart Pendant Extension App and reference jobs for common F/T applications.
-
Compatible with Ethernet-Axia sensors and other sensors using a NetBox.
-
Incorporate highly accurate, high resolution force sensing into Yaskawa applications utilizing variable Force/Torque Data.
-
Ideal for weighing, threshold monitoring, touch-off orientation, and data visualization.
-
ATI’s product and application knowledge supports customers in the USA and worldwide with global engineering and sales resources.
ATI’s Yaskawa F/T Sensor Kits:
-
Kits are named according to the ATI Sensor model and Yaskawa robot model combination, and they include the following:
-
Hardware:
-
Sensor with Ethernet electronics
-
Cables
-
Interface plate(s) and fasteners for mounting to the robot
-
Software:
-
For Smart Pendant Users:
-
ATI Yaskawa Installation Package (.yip) which includes:
-

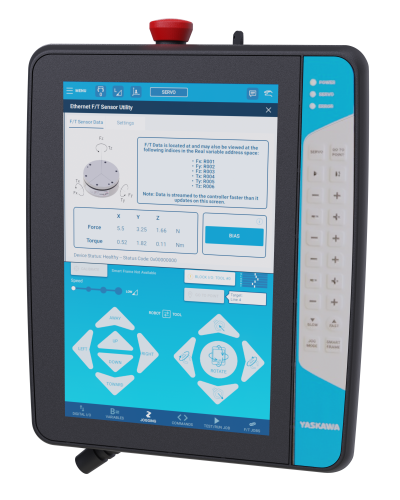

ATI Ethernet F/T Smart Pendant Extension
-
ATI NETFTS (Ethernet F/T Sensor) MotoPlus Application
-
ATI NETFTS Robot Jobs for Force Searching, biasing F/T data, and applying Tool Transforms
-
Variable Configuration
-
For Standard Pendant Users:
-
ATI NETFTS (Ethernet F/T Sensor) MotoPlus Application
-
ATI NETFTS Robot Jobs for Force Searching, biasing F/T data, and applying Tool Transforms
System Requirements from Yaskawa:
For Smart Pendant Users:
-
Compatible Controllers:
-
YRC1000
-
YRC1000 micro (YRC1000µ)
-
Software Requirements:
-
Motoplus application provided on the .yip file. Download .yip installer below.
-
v2.1.2 of the Smart Pendant software
For Standard Pendant Users:
-
Compatible Controllers:
-
YRC1000
-
YRC1000 micro (YRC1000µ)
-
DX200
-
Other System Requirements:
-
Controller must be compatible with MotoPlus Applications
-
Controller must have an Ethernet adapter (Ethernet port)
-
Download MotoPlus and Jobs below
Contact your Yaskawa sales or applications representative to ensure you have the correct components for your robot and controller.
Documentation:
Download:
|
