New IP60, IP65 and IP68 Models

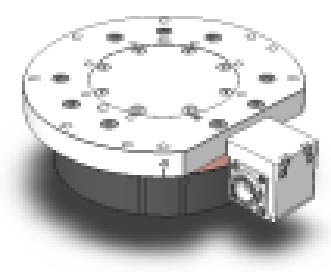

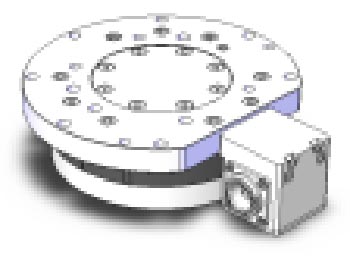

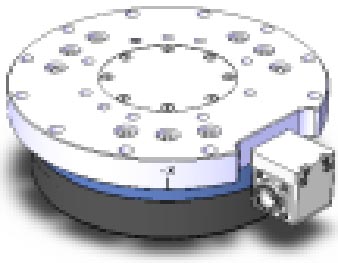

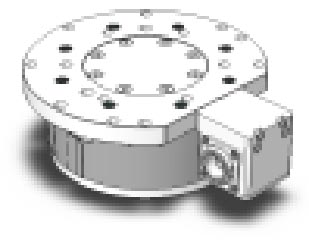

IP60 units are dust proof against particles 75 µm wide (talcum powder). These transducers incorporate a neoprene rubber dust jacket to prevent outside contaminants from entering the unit.

Suitable Applications: Industrial Grinding, Polishing, General Use

Features / Advantages: Rugged Lemo Connectors, Blind Mounting Holes, Flanged Mounting Adapter Plates

Models Available:

IP60:  Dust Proof

F/T Model

DELTA

THETA

OMEGA 160

OMEGA 190

OMEGA 250

Weight

4 lbs (1.81 Kg)

19 lbs (8.62 Kg)

17 lbs (7.71 Kg)

31 lbs (14.06 Kg)

73 lbs (33.11 Kg)

Illustration

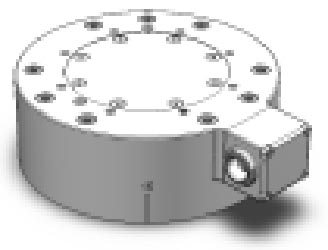

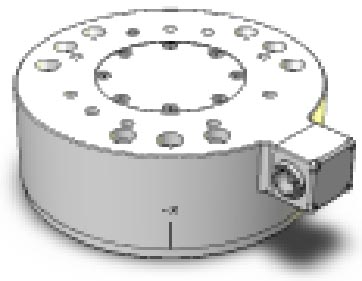

IP65 units are available for use in wet environments and are water splash proof. These transducers incorporate nitrile and silicone O-rings. Contact ATI to verify compatibility with non-water fluids or to review seal material customization options.

Suitable Applications: Water Jet Spray, Outdoor Applications, Etc.

Features / Advantages: Rugged Lemo Connectors, Blind Mounting Holes, Sealed Stainless Steel Body Construction

Models Available:

IP65:  Water Splash Proof

F/T Model

DELTA

THETA

OMEGA 160

OMEGA 190

OMEGA 250

Weight

5.8 lbs (2.63 Kg)

20 lbs (9.07 Kg)

16 lbs (7.26 Kg)

29 lbs (13.15 Kg)

70 lbs (31.75 Kg)

Illustration

IP68 units are available for use in underwater (fresh water) environments to a maximum depth of 10 meters. These transducers incorporate nitrile and silicone O-rings. Contact ATI to verify compatibility with non-water fluids, to review seal material customization options or to receive information regarding the loss of Fz range vs. operating depth.

Suitable Applications: Naval Research Applications, Tank Testing for Aerospace Applications

Features / Advantages: Rugged Lemo Connectors, Sealed Stainless Steel Body Construction, Submersible in Fresh Water

Models Available:

IP68:  Submersible to 10 Meters in Fresh Water

F/T Model

DELTA

THETA

OMEGA 160

OMEGA 190

OMEGA 250

Weight

5.8 lbs (2.63 Kg)

20 lbs (9.07 Kg)

16 lbs (7.26 Kg)

29 lbs (13.15 Kg)

70 lbs (31.75 Kg)

Illustration

For specifications on the above models - click here for our most recent catalog

For 2D & 3D models – click here to go to our on-line library
