Compliant Deburring Blade Model CDB-8-11


Skip Navigation LinksHome > Products > Robotic Deburring Tools > Robotic Deburring Models > CDB-8-11



Product Advantages
  • Suited for light and medium effort deburring, chamfering, and scraping of plastic, aluminum, steel, and brass parts.
  • Great replacement for hand deburring operations.
  • Utilizes industry standard blades and media.
  • Floating radial and axial compliance reduces robot programming.
  • Compliance force adjustable by varying supply air pressure.
  • Mounts to a robot, bench, or fixture.

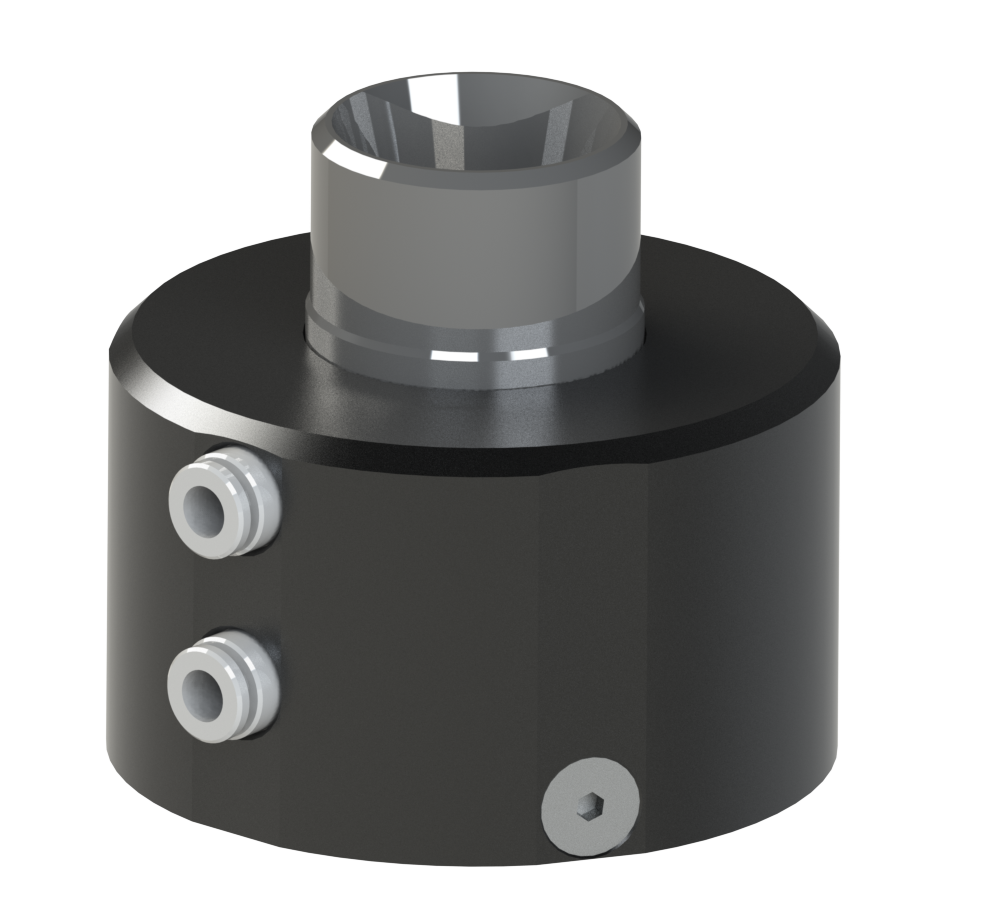

CDB-8-11 Compliant Deburring Blade
CDB-8-11 Compliant Deburring Blade

SpecificationsAccessoriesDrawingsManuals3D CAD Models


Weight 2.3 lb
Radial Compliance ±5.5º
Axial Compliance 0.32 in
Axial Compliance Force 3 lbf - 14 lbf
Radial Compliance Force 5.8 lbf - 17 lbf
Collet Single ball lock – interface to Noga or Shaviv blades

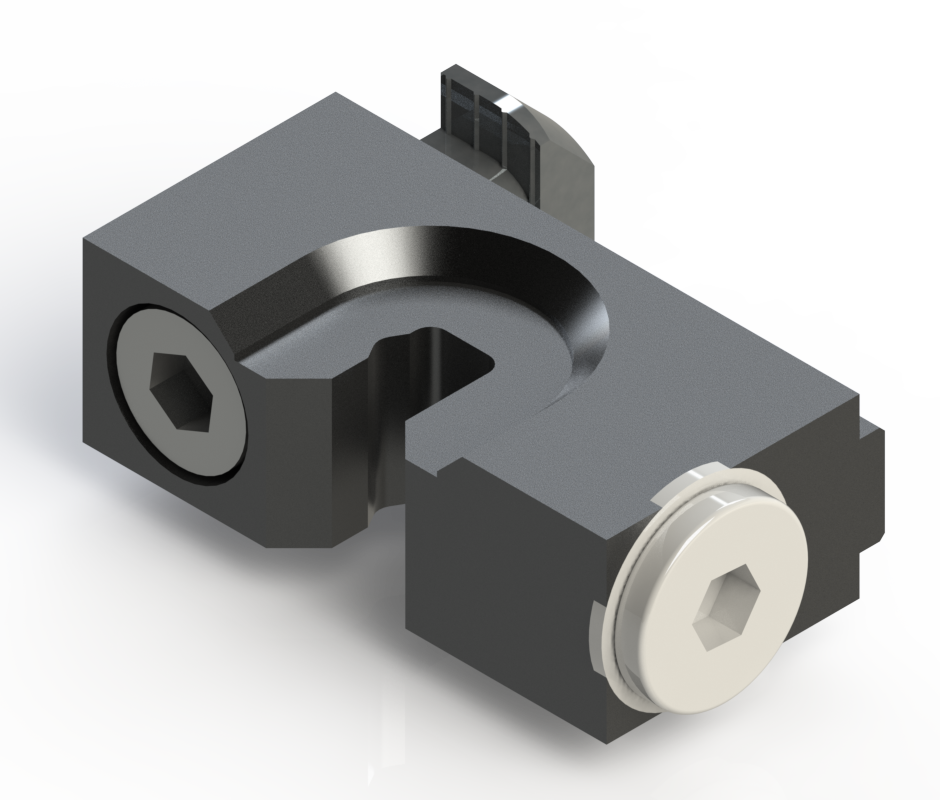

Mounting Feature Rear dovetail only
