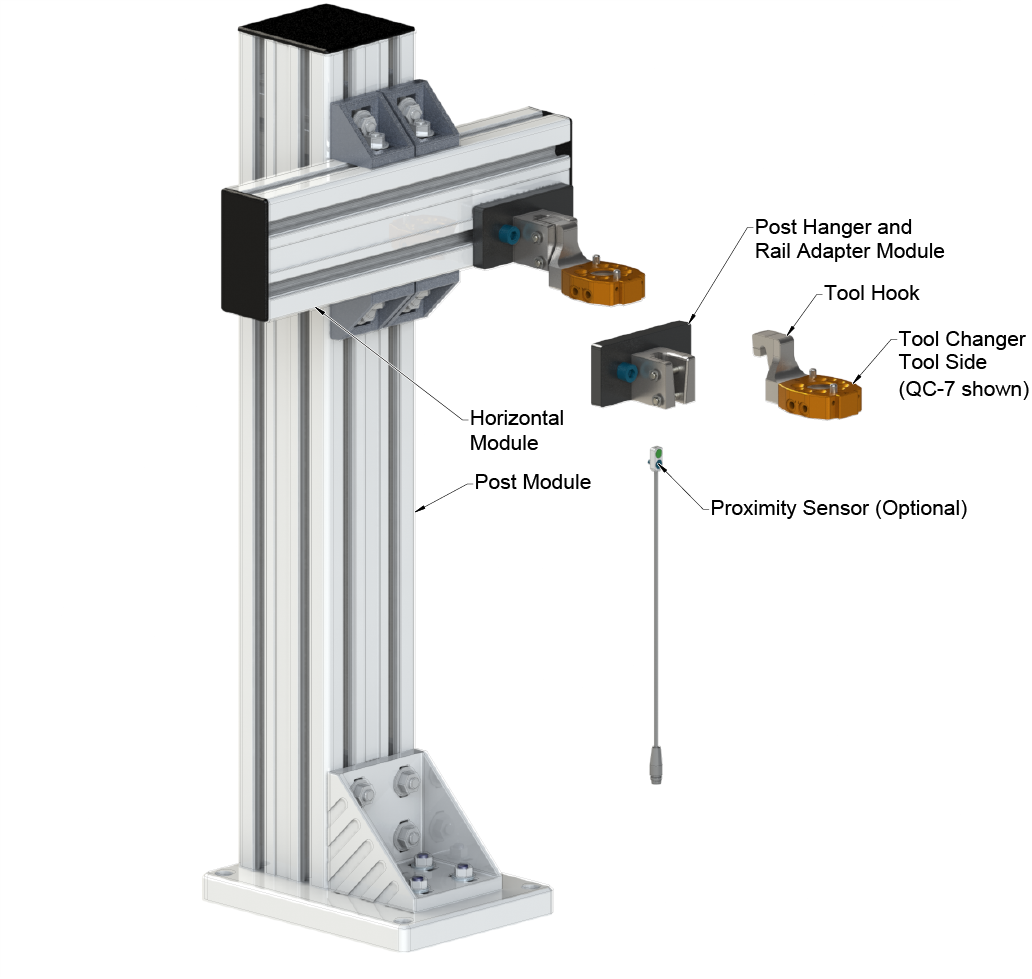

These items must be considered when selecting the necessary components for a TSS Small Tool Stand System:

  • To select the size Rack Assembly, select the size Tool Changer to be used. The TSS system is used for models QC-5 through QC-21.

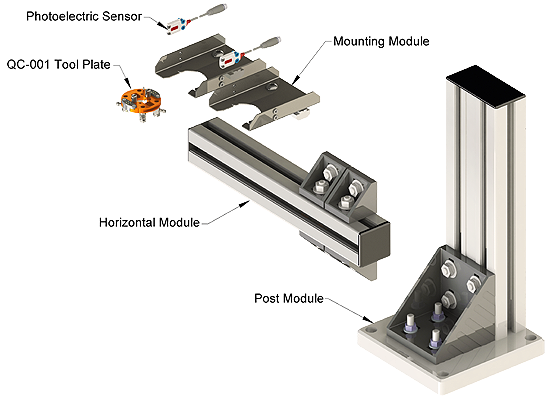

              Rack Assembly Information


  • Select from three different interface options for attaching the tools to the stand:

    Option #1 - Interface plates that attach to the Tool Side of the Tool Changer.
           Interface Plate Information

    Option #2 - Alignment pins attached to unused air ports on the Tool Changer. These air ports will no longer be usable for air pass-through. The remaining air ports will require the proper air fittings to prevent contact with the Rack. This option with a QC-21 Tool Changer uses one of the utility module mounting flats for attaching an alignment pin.

    Option #3 - A Locking Mounting Block System uses a horizontal Rail for mounting instead of the Rack Assembly and Tool Adapter Bar.
           Locking Mounting Block System Information
  • To select the Rail components, approximate the area that the Tool Stand would fit into including maximum allowable height.
           Rail Information

Use the product index below to help select the ATI part numbers associated with the desired TSS Small Tool Stand components


Small Tool Stand System Product Index
- Includes links to 2D product drawings for individual components and assemblies


Small Tool Stand Configuration Examples
Drawing Number Description
9230-20-1913 Single Post, 3 Position Adapter and Rack Assembly
9230-20-1914 Single Post, 5 Position Adapter and Rack Assembly
9230-20-2562 Single Post, Horizontal Rail, Mounting Block with Lock Cylinder

TSS Manuals
TSS Tool Stand Manual
Locking Tool Stand Manual

Please contact your ATI Account Manager for further clarification in selecting the proper tool stand components to fit your application 919-772-0115.
