The QC-210 Teaching Aids were developed to help customers reduce the time required to teach the robot to pick-up and drop-off the Tool. Use of the Teaching Aids can also reduce unnecessary wear resulting from improper alignment of the Tool Side and Master Side Tool Changer.

Product Advantages

Provides for easy X, Y, and Z alignment of the Tool Side and Master Side Tool Changer.
Significantly reduces the time required to teach the robot to Pick-up and Drop-off the Tool.
Does not require tools or fasteners to set-up or use.
High-contrast alignment marks provide for an easy-to-use alignment method.
A single set of teaching aids can be used to teach all of your QC-210 Tool Changers.
Use of the Teaching Aids may help extend the life of your Tool Changer's Alignment Pins and Bushings by reducing unnecessary wear resulting from improper Tool and Master alignment.

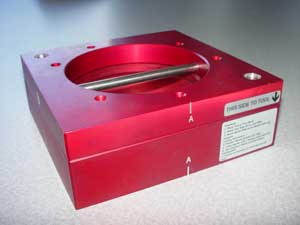

QC-210 Teaching Aid

Specifications

Drawings

Manuals

ATI Part Number:	9120-210-TEACH
Description:	QC-210 Teaching Aid
Materials:	Tool Side Material = 6061 Aluminum Master Side Material = 7075 Aluminum
Weight:	Tool Side = 2.05 lbs. Master Side = 3.30 lbs.
