Product Description
The ATI Multi-Axis Force/Torque Sensor system measures all six components
of force and torque. It consists of a transducer, shielded high-flex cable, and
intelligent data acquisition system or stand-alone controller. For more information,
please see our
catalog
.
|
DAQ F/T
|

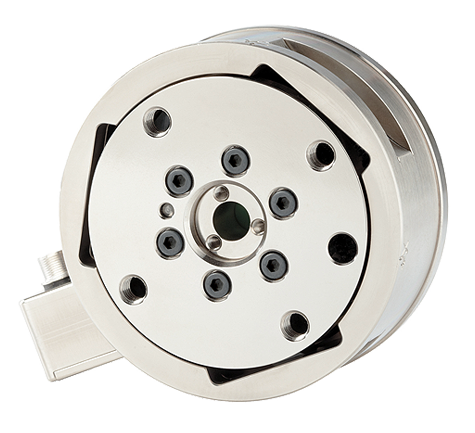

Transducer
The compact and rugged monolithic transducer uses silicon strain gauges
to sense forces. The transducer's silicon strain gauges provide high noise immunity
and allow high overload protection, which is standard on all models.
|
DAQ F/T
ATI offers a line of DAQ F/T transducers that produce an output that can
be read by a data acquisition card that has six channels available. This configuration
allows ATI transducers to be integrated into any PC or laptop, creating a more flexible
system. ATI provides data acquisition cards and integral power supply or you
can provide your own. The ATI DAQ F/T transducers use a state-of-the-art interface
board on or near the transducer providing an extremely low-noise signal. The
data acquisition card reads the signals and ATI software converts those signals
to force and torque output.
|
Controller F/T
|
Controller F/T
The controller outputs forces and torques (force/torque values)
via the standard RS-232 serial port at a variety of baud rates, and as voltages
via an analog port. Digital discrete I/O capability is available for signaling user-programmable
force/torque thresholds, monitoring system health, and biasing (zeroing) force/torque
values. |
|
|
|
|
