DeltaRad
|
In collaboration with the customer, ATI developed Delta and Theta transducer models that feature a radiation hardness better than 10kGy. The DeltaRad and ThetaRad transducers are compatible with ATI's DAQ product line and include a 13mm through hole.
Delta Standard Specifications
Theta Standard Specifications
|
Custom-266
|
When integrating a transducer into an existing application, the customer was limited by stack height. The space was too small to accommodate a standard transducer and interface plates. ATI designed special tool and mounting adapter plates with interface patterns corresponding to customer's existing tooling and robot.
Mini85 Standard Specifications
|
TWL-Omega190TH63
|
The customer required a transducer with a large through hole and a custom connector. ATI modified an Omega190 transducer to provide a 63mm through hole, integrated custom connector, and provided external electronics.
Omega190 Standard Specifications
|
Custom-205
|
ATI designed a transducer to meet this customer’s unusual requirements. ATI equipped the transducer with a special temperature sensor and other components, used a special electrical connector, and made custom mounting plates.
Mini85 Standard Specifications
|
Custom-168 and Custom-169
|
The customer required a transducer that could be used in a vacuum chamber. ATI developed a transducer compatible with the vacuum chamber and a method to connect the transducer to the equipment external to the vacuum chamber.
Mini45 Standard Specifications
|
Custom-187
|

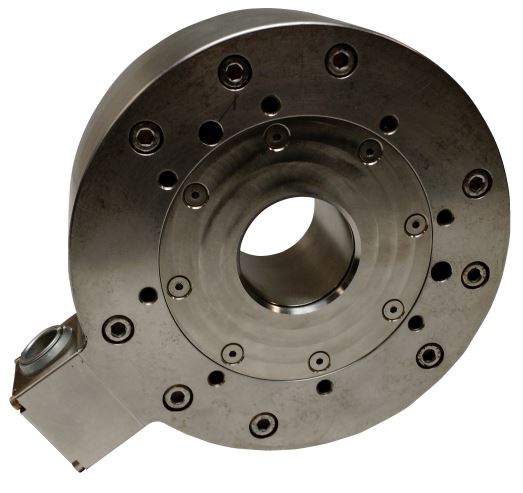

The customer required an IP65 rated transducer with a large through hole, custom connector block, and a special interface cable. ATI developed a method to seal the transducer’s through hole and customized the connector block to fit the application, and integrated the special cable.
Omega190 IP65/IP68 Standard Specifications
|
Omega190-TH
|
A customer needed to pass tooling through the center of the transducer. ATI placed a 55mm through hole in an Omega190 transducer and provided external electronics.
Omega190 Standard Specifications
|
Custom-222
|
This custom design allowed a Nano17 to be submerged in a bath of white mineral oil. ATI performed compatibility tests to ensure transducer reliability and developed a new form of cabling that could withstand immersion in the oil bath.
Nano17 Standard Specifications
|
Custom-217
|
The customer required multiple transducers, each with a custom connector and an unique wiring harness. ATI modified Mini40 transducers and created the wiring harnesses to meet their needs.
Mini40 Standard Specifications
|
Custom-229
|
The customer’s application required a unique cable exit location. ATI modified a Mini40 transducer by offsetting the axial cable exit.
Mini40 Standard Specifications
|
Custom-227
|
The customer needed to pass an axle through a Delta transducer. ATI placed a 15mm through hole in a Delta transducer and provided external electronics.
Delta Standard Specifications
|
TWFB-Mini45-R
|
The customer had an application that required additional reference signals for each strain gage. ATI developed internal electrical hardware to output the customer’s required signals.
Mini45 Standard Specifications
|
Mini45-ERA
|
For reasons of available space, the customer needed a transducer with a special cable exit. ATI created a transducer with a right-angled cable exit that incorporated a molded cable strain relief.
Mini45 Standard Specifications
|
