Selecting a Compensator

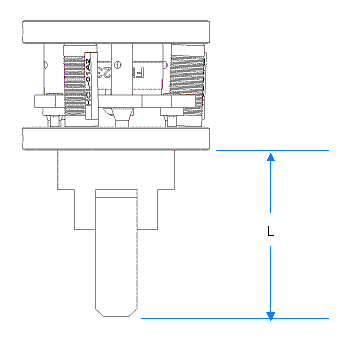

2. Calculate the optimum Center-of-Compliance (C-of-C): Calculate the total distance L, from the tool (bottom) plate of the Compensator to the initial contact point of the part being inserted (see figure below). Take into account any interface plates. Select the model with a C-of-C within 30% of the distance L. It is better to have a C-of-C below the insertion point than above it. If the fit between the peg and the hole is loose, a model with a C-of-C within 60% of distance L is allowable.   << STEP 1    STEP 3 >> 产品描述 选择一个补偿装置 补偿装置型号 弹性剪切柱数据 上锁功能（可选） 锁紧传感器功能（可选） 目录和手册 视频演示
