| Model | Compatible Compensator Size | Elastomer | Operating Temp. (Celsius) | Oil Resistance | Ozone Resistance | Lateral Stiffness (lbs/in) | Axial Stiffness (lbs/in) |
| HCL-01A2 | 000 | Neoprene | -29 to 82 | Good | Good | 6 (Very Low) | 2329 |
| HCL-02A | 000 | Nitrile | -29 to 82 | Excellent | Good | 28 (High) | 10498 |
| HCL-11A | 100, 200, 400 | Neoprene | -29 to 82 | Good | Good | 20 (Low) | 24889 |
| HCL-12A | 100, 200, 400 | Neoprene | -29 to 82 | Good | Good | 14 (Very Low) | 6075 |
| HCL-13A | 100, 200, 400 | Nitrile | -29 to 82 | Excellent | Good | 34 (High) | 8300 |

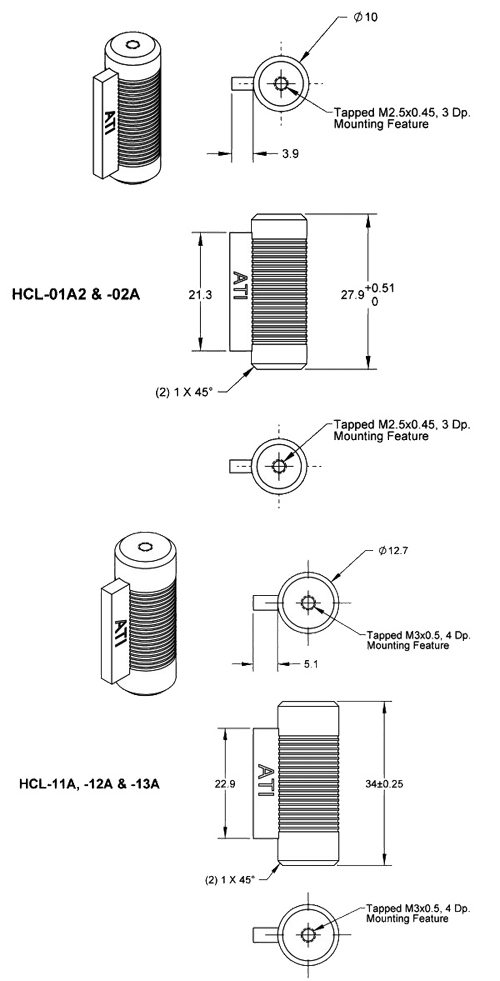

Shear Pad Dimensions and Mounting Features
|
