TSS Configuration Examples


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Tool Stands > Small Tool Stands > TSS Configuration Examples and Manuals



Below are just a few of the many possible configurations of a Tool Stand Small (TSS system). Use these pre-configured examples or design your own system utilizing our highly configurable components. Please contact your ATI Account Manager for further clarification in selecting the proper tool stand components to fit your unique application 919-772-0115.

TSS Manuals
Pin and Bushing Configurations

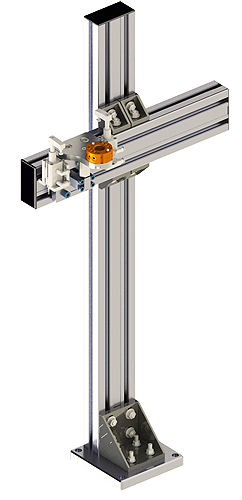

TSS Tool Stand for QC-5, QC-11 with mounting module, Tooling Interface Plate and Clamp Modules

Drawing: 9230-20-TSS-ASY-7123

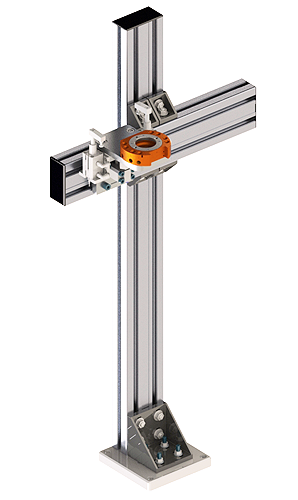

TSS Tool Stand for QC-20/21 with Mounting Module Tooling Interface Plate and Clamp modules

Drawing: 9230-20-3613

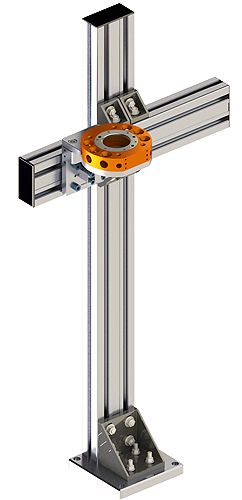

TSS Tool Stand for QC-41 with Mounting Module and Tooling Interface Plate

Drawing: 9630-20-TSS-ASY-7539

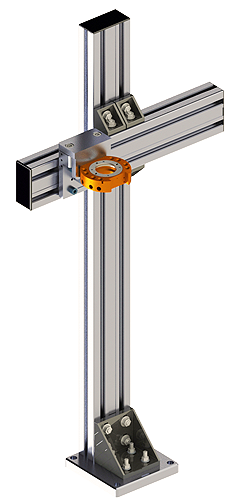

TSS Tool Stand for QC-20/21/40/41 with Mounting Module and Vertical Tooling Interface Plate

Drawing: 9230-20-7499



Pin and Rack Configurations

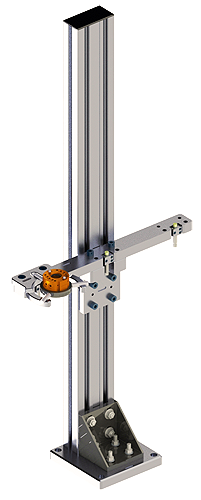

Tool Stand Common Parts for QC-5 through QC-21 with 3 position Adapter Bar

Drawing: 9230-20-1912

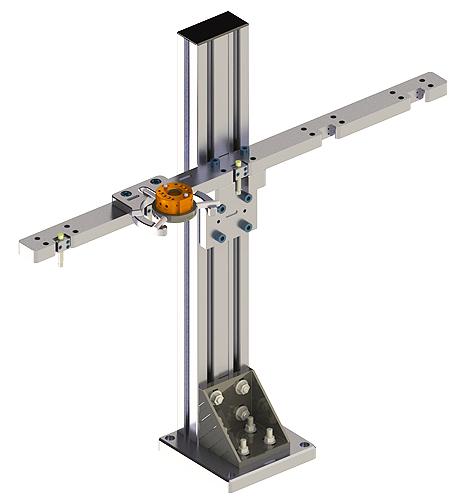

Tool Stand Common Parts for QC-5 through QC-21 with 5 position Adapter Bar

Drawing: 9230-20-1914

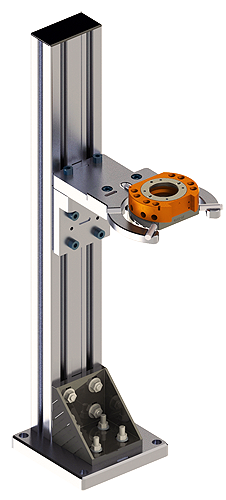

Tool Stand for QC20/21/21E with forward adapter

Drawing: 9230-20-1679




QC-001 Configurations

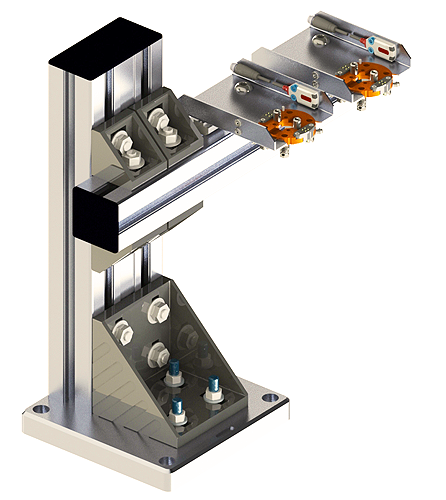

TSS Tool Stand for QC-001

Drawing: 9230-20-3905


TSS Home
Configuring a TSS System
TSS Product Index
TSS Configuration Examples and Manuals
3D Models
