TSM Configuration Examples


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Tool Stands > Medium Tool Stands > TSM Configuration Examples and Manuals


Below are just a few of the many possible configurations of a Tool Stand Medium (TSM system). Use these pre-configured examples or design your own system utilizing our highly configurable components. Please contact your ATI Account Manager for further clarification in selecting the proper tool stand components to fit your unique application 919-772-0115.

TSM Manuals


Pin And Bushing Module Configurations

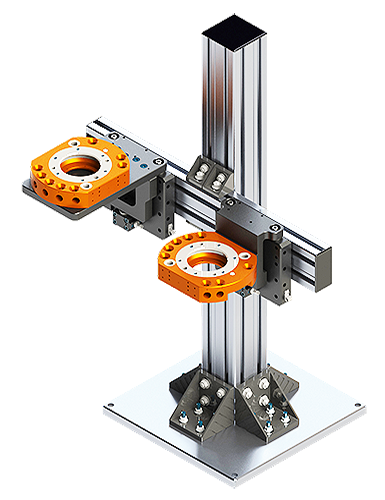

TSM System with 36" TSM Post Module, Pin and Bushing Mounting Modules, QC-100 Horizontal Tooling Interface Plate, QC-100 Vertical Tooling Interface Plate.



V-Block Horizontal Configurations

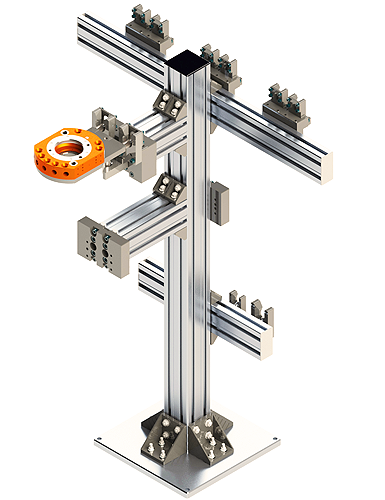

TSM System with 48” Post Module, Adapter Modules, Horizontal Modules, Horizontal Extension Modules, V-Block Horizontal Mounting Modules, and QC-100 Tooling Interface Plates

Drawing: 9230-20-1880




V-Block Vertical Configurations

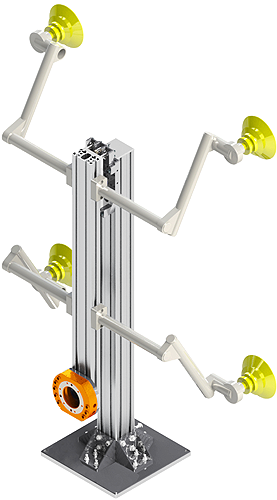

TSM System with 48” Post Module, V-Block Vertical Mounting Module, Sensor Module, Proximity Sensor, and Vertical Tooling Interface Plate

Drawing: 9230-20-1920




Tool Hanger Configurations

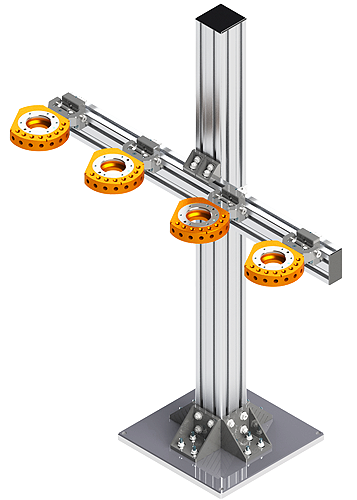

TSM System with 48” Post Module, Horizontal Module, (4)Tool Hanger Mounting Modules, (4) Tool Hangers for a QC-71

Drawing:  9230-20-3198
