Product Overview

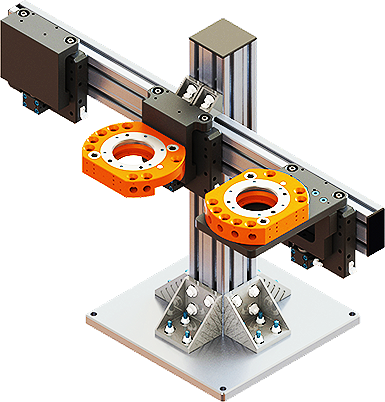

The ATI Modular Tool Stand System, or TSM, is compatible with the medium range of Tool Changers— QC 40 through QC 150. The Stand is designed for maximum flexibility to fit most customer applications. The modular system allows you to build your own tool storage rack based on the number of tools, positioning, orientation, and mounting arrangements required. The TSM provides a unique option to utilize a complete arrangement of modules, or use only the tooling-interface Pins and “V” Blocks and mount them on your own fixture.


FEATURES

  • Modular System Allows for Customization

  • V-Blocks – 4140 Hardened Tool Steel Pin Blocks provide repeatable tool drop-off

  • Use Extruded Rail and Base, or mount the Racks on your own Platform

  • Durable Stainless Steel Interface Pins

  • Proximity Sensor Option

  • Adapts to TSL or TSS Modules as well


V-Blocks and Pins
The TSM utilizes V-Shaped 4140 Hardened Steel Blocks that receive corresponding steel alignment pins. The V-Blocks are designed to mount to extruded railing components or bolt directly onto custom fixtures. The mating alignment pins are included with the TSM Tooling Plate assemblies which attach to the tool. The Alignment Pins are also sold separately as replacement parts or for custom applications.

Mounting Modules
The TSM Mounting Modules are specifically designed to interface with the Tooling Plate assemblies for each corresponding QC Tool Changer. Mounting Modules mount onto the included TSM Rail components, or you may use the existing bolt patterns to mount to your custom fixture. Mounting Modules come in 2 configurations: Horizontal or Vertical QC orientation. See the TSM Product Index for tool interfacing option details.

Tooling Plate Assemblies
The TSM Tooling Plate assemblies attach to your tooling. Alignment Pins are included with the Tooling Plates. Customers can either specify their tool attachment requirements at the time of purchase, or choose Blank Tooling Plates and opt to machine their tooling Bolt Patterns in later.

Post and Rail Modules
Choose from several TSM Post and Rail Modules to build your specific Stand configuration. The Post Modules, Horizontal Modules, and Horizontal Extensions are aluminum extruded rails (Bosch series). Alignment and mounting hardware is included. Basic Standard rail lengths are offered, but customers may specify other lengths.

Adapter Modules
TSM Adapter Modules are specifically designed adapter plates with mounting hardware included that attach Mounting Modules to Rail or Post Modules. Adapter Modules extend the flexibility of the Tool Stand System to cover a myriad of configuration options.



Medium Tool Stand System Product Index
- Includes links to 2D product drawings for individual components and assemblies



Medium Tool Stand System Manual



As always, please contact your ATI Account Manager for further clarification in selecting the proper tool stand components to fit your application.
