Below are just a few of the many possible configurations of a Tool Stand Large (TSL system). Use these pre-configured examples or design your own system utilizing our highly configurable components. Please contact your ATI Account Manager for further clarification in selecting the proper tool stand components to fit your unique application 919-772-0115.

TSL Manuals


Pin and Bushing Configurations

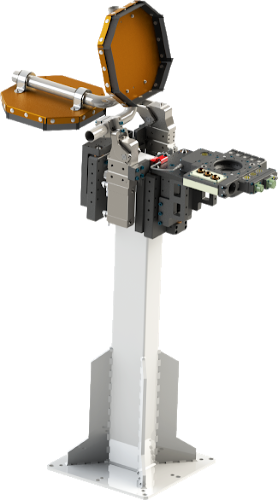

TSL Tool Stands - 48” tall with Dual Pin and Bushing Rigid Modules, Tooling Interface Plates, Single Sensors, TSI Switches, and Vertical Debris Shields

Drawing: 9230-20-4223

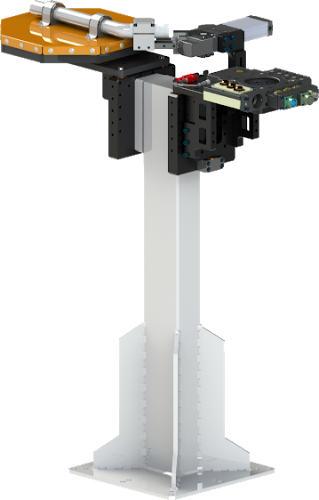

TSL Tool Stands - 48” tall with Dual Pin and Bushing Rigid Modules, Custom Tooling Interface Plates, Single Sensors, TSI Switches, and Horizontal Debris Shield

Drawing: 9230-20-7571



TSL Tool Stands - 30” tall with Dual Pin and Bushing Rigid Modules, Tooling Interface Plates, Single Sensors, TSI Switches, and Vertical Debris Shields

Drawing: 9230-20-7704




Hook and Hanger Configurations

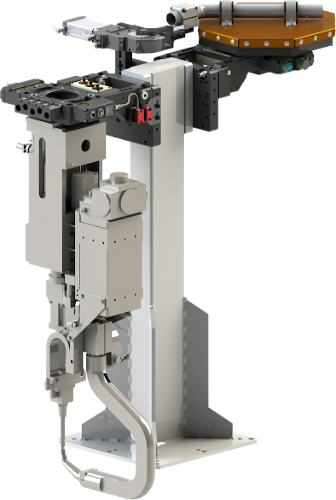

TSL Tool Stands - 48” tall with Dual Hook and Hanger Style Rigid Modules, NA2/NA3 Tool Hook Modules, TSI Switches, and Horizontal Debris Shield

Drawing: 9230-20-7543

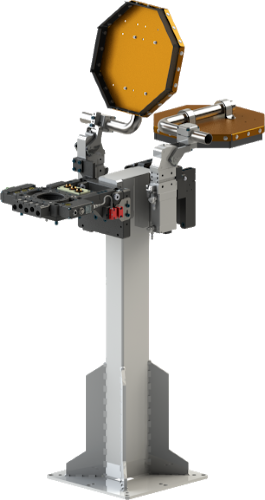

TSL Tool Stands - 48” tall with Single Hook and Hanger Style Compliant Module, Vertical Tooling Hook Plate, and Proximity sensor

Drawing: 9230-20-7548
