Home > Products > Force/Torque Sensors

F/T Sensor News:

ATI develops new IP68-rated Nano25 Force/Torque Sensor
(Dec 2008) Can be used to a depth of 4 meters for underwater testing.

ATI releases the Network Force/Torque (Net F/T) Sensor System
(Jul 2008) The Net F/T provides Ethernet, EtherNet/IP™ and CAN bus interfaces to ATI's Transducers

ATI's Force/Torque Sensor Featured on the Cover of Motion System Design Magazine
(Apr 2008) Article describes the basics of Force/Torque Sensors and considerations
when selecting a sensor

Force/Torque Sensors featured in Design News Magazine
(Aug 2007) Force Control and Robotic Vision provides solution for automating difficult assembly, machining and finishing tasks

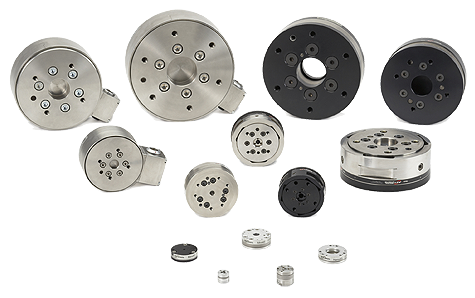

Six-Axis Force/Torque Sensors

The ATI Multi-Axis Force/Torque Sensor system measures all six components of force and torque. It consists of a transducer, shielded high-flex cable, and intelligent data acquisition system, Ethernet/DeviceNet interface or F/T controller. Force/Torque sensors are used throughout industry for product testing, robotic assembly, grinding and polishing. In research, our sensors are used in robotic surgery, haptics, rehabilitation, neurology and many others applications. Contact ATI for more information.

What is a Force/Torque Transducer?

Six-Axis Force/Torque Sensor: Transducer measuring and outputting forces and torques from all three Cartesian coordinates (x, y and z). A six-axis force/torque transducer is also known as a multi-axis force/torque transducer, multi-axis load cell, F/T sensor, or six-axis load cell. See our Glossary of other sensor-related terms.
