New Product - Wireless F/T


Skip Navigation LinksHome > Products > Force/Torque Sensors > New Product - Wireless F/T

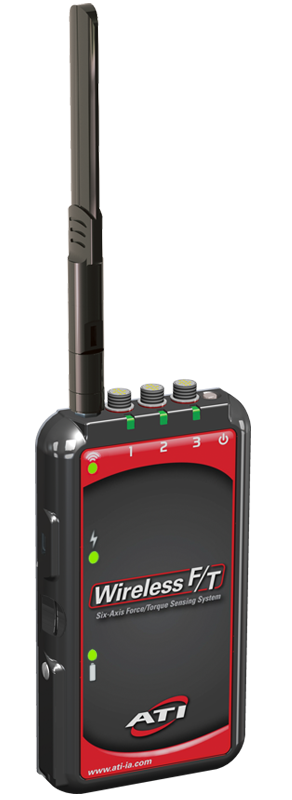

The Wireless F/T is a pocket-sized wireless transmitter for up to six ATI Multi-Axis Force/Torque transducers. The Wireless F/T can stream to the user’s host device for data collection, real-time motion control, or user-defined signal processing. The Wireless F/T comes in two configurations, one that supports up to six transducers and one that supports up to three transducers.



Product Features
  • Communicates using IEEE 802.11 a/b/g/n at either 2.4 GHz or 5.0 GHz, so it can easily be used with an existing wireless infrastructure.

  • Supports as many as six ATI transducers simultaneously.

  • Typical range is 30 m (98 ft), in an office type environment. With unobstructed environments a 100 m (328 ft) range is possible.

  • Small enclosure with robust mounting feature:
    Three Transducer Wireless F/T: 150 mm × 82 mm × 19 mm (5.9 in × 3.2 in × 0.75 in) excluding mating connectors.
    Six Transducer Wireless F/T: 150 mm × 82 mm × 33 mm (5.9 in × 3.2 in × 1.3 in), excluding mating connectors.

  • Battery life is approximately one hour at full measurement rate with six transducers enabled, and is extended significantly when using fewer transducers. External power may be used.

  • Includes a Java demo program and source code.



Additional Capabilities

  • Multiple Power Options: Uses a removable, rechargeable battery that can be charged internally or externally. The Wireless F/T can be powered from the Micro USB connector, using an external, high-current, 5VDC power supply.


Three-Transducer Wireless F/T Unit


Six-Transducer wireless F/T Unit
Wireless F/T Manual
Wireless F/T Flyer
