9115 Series Compensator Specifications

Compensator

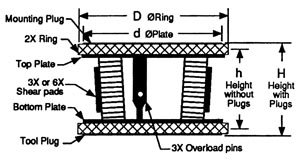

Size		 Size (inches) Compensator Weight (lbs.) Allowable Misalignment Standard (Modified) Drawings
D d H h Only with Ring/Plug Lateral Cocking Torsion
000 NA 2.2 NA 1.6 0.2 NA 0.065" 1.0° 4.5° 9230-15-1036 (Sheet 1 of 2)

9230-15-1036 (Sheet 2 of 2)
100 3.15 2.8 2.2 1.8 0.4 0.5 0.085" 1.1° 5.0° 9230-15-1032 (Sheet 1 of 2)

9230-15-1032 (Sheet 2 of 2)
200 3.90 3.6 2.2 1.8 0.6 0.8 0.085" 1.1° 4.0° 9230-15-1035 (Sheet 1 of 2)

9230-15-1035 (Sheet 2 of 2)
400 NA 6.3 NA 2.0 3.0 NA 0.085" 0.35° 2.5° 9230-15-1013

Note: 100 and 200 size Compensators use three styles of shear pads: HCL-11, HCL-12 and HCL-13;  000 size Compensators use three HCL-01 shear pads;  400 size Compensators use six or twelve HCL-13 shear pads

Model Number C of C Load Capacity, lb, in-lb Stiffness, lb/in, in-lb/rad
Tension Lateral Compression Cocking Lateral Cocking
9115-001-A 0.9 5 1.5 80 30 33 1600
9115-113-A 1.9 18 6 280 60 150 4000
9115-112-A 2.1 10 2 110 40 41 1100
9115-112-B 2.7 10 2 120 45 41 1600
9115-213-C 3.1 44 12 610 155 300 15400
9115-212-A 3.2 14 2 140 60 41 2000
9115-213-B 3.2 22 6 310 80 150 8400
9115-212-C 3.4 28 4 300 125 82 4400
9115-212-B 3.6 14 2 160 65 41 2400
9115-111-B 4.8 10 2 290 45 65 3300
9115-211-A 5.5 12 2 300 60 65 4200
9115-211-C 5.8 24 4 610 125 130 9100
9115-211-B 6.1 12 2 310 65 65 4900
9115-413-C 9.0 44 6 610 350 400 80000
9115-413-D 9.0 88 12 1220 700 800 160000

Note:  -A and -B models have 3 shear pads, -C has 6, -D has 12
